Proper Pipe Support: How to Prevent Sagging and Costly Damage

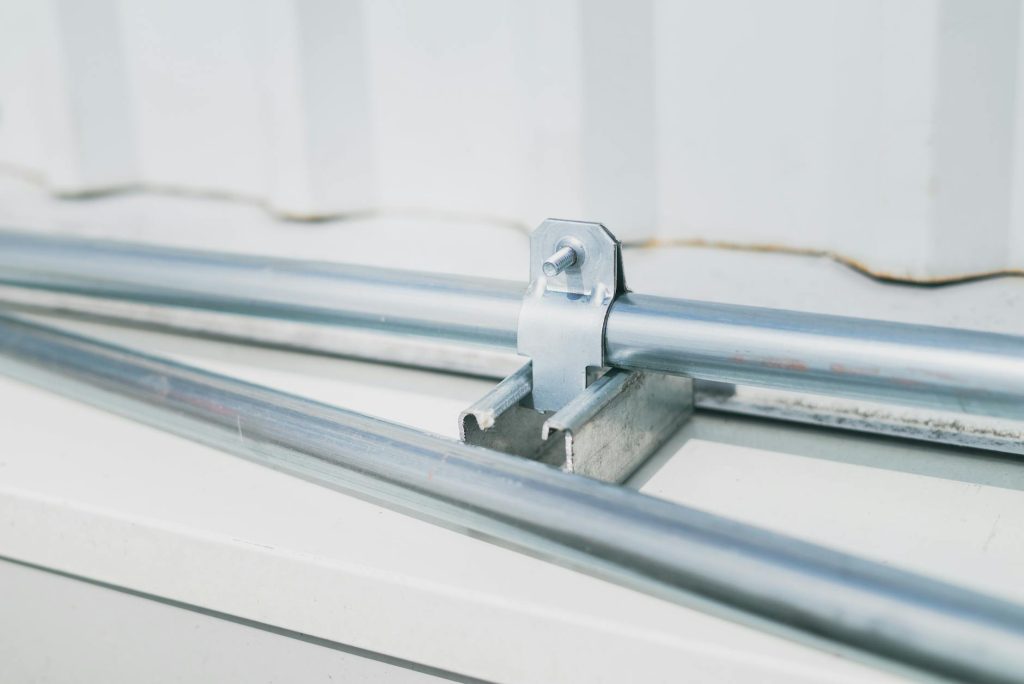

Photo by Los Muertos Crew on Pexels

Plumbing pipes need to be held in position — not just during installation, but for the decades they'll carry water through your walls and ceiling. When supports are too far apart, missing entirely, or positioned incorrectly, pipes sag under their own weight, vibrate when water moves through them, and put constant stress on joints and connections. In Gold Coast homes, this is a common cause of slow leaks that go undetected for months before causing water damage.

The good news is that proper pipe support is straightforward when done right. This guide covers the correct materials, maximum spacings, installation technique, and what happens when support is inadequate — so you know what to fix if you're doing a DIY installation, and what to look for if you're assessing existing pipework.

Why Pipe Support Matters

At first glance, a pipe sitting between two clips a metre apart seems fine. In practice, several forces are acting on that pipe continuously:

Gravity and Distributed Weight

A 100mm copper pipe filled with water weighs roughly 3–4 kg per metre. Without adequate support, the pipe bends downward between support points — creating a catenary curve. Over years, this curve becomes permanent as the metal creeps, and the bent sections become stress concentration points.

Thermal Expansion and Contraction

Copper expands by approximately 17mm per 10°C rise for every 10 metres of pipe. In Queensland, roof-space temperatures swing from 5°C in winter nights to 70°C during summer days. This means 10 metres of roof-space copper pipe moves roughly 110mm seasonally. Without adequate support that allows controlled movement, this expansion buckles the pipe or strains joints.

Vibration from Water Hammer

Every time a tap closes or a pump starts, a pressure surge travels through the pipework. Inadequately supported pipes transmit this vibration to walls and ceiling structures, creating noise, work-hardening the pipe at vibration nodes, and eventually cracking joints.

Differential Movement at Joints

When adjacent pipe sections move differently — one fixed, one unsupported — the joint between them carries all the relative movement. This is how a pipe joint that was perfectly soldered will eventually weep: cumulative micromovement fatigues the solder joint over years.

Correct Pipe Support Spacings (Australia)

AS/NZS 3500 sets minimum support requirements for residential plumbing. The key spacings for Gold Coast homes:

Flexible pipes (PEX, HDPE) sag more readily than copper and require closer support spacing. In Gold Coast's higher temperatures, PEX in roof spaces should be supported at the lower end of these ranges due to increased thermal flexibility.

Types of Pipe Supports and When to Use Each

Pipe Clips (Saddle Clips)

The most common residential support. A single-screw clip that holds the pipe against a joist, rafter, or wall. Available in plastic and stainless steel:

• Plastic clips — adequate for protected internal use. Not suitable for outdoor or high-UV Gold Coast locations.
• Stainless steel clips — required for outdoor use, roof spaces with high humidity, and near-coastal homes.

Important:
Clips must match the pipe outside diameter. A clip that's too large allows lateral movement; too small creates a stress concentration point.

Pipe Hangers (Clevis Hangers)

For pipes that must hang below a structure (e.g., sub-floor installations), a clevis hanger allows the pipe to rest in a curved support. These permit some thermal expansion movement while holding vertical position.

Split Clamps

For larger diameter pipes or where vibration damping is important, a split clamp with a rubber liner reduces vibration transmission to the structure. Recommended around pump outlets and at main supply entries.

Continuous Support (Timber Blocking)

For long horizontal PEX runs in roof spaces, continuous timber blocking — a batten running the length of the pipe run — is more effective than individual clips at preventing sag over the full run.

Inspecting Existing Pipe Supports in a Gold Coast Home

If you have access to your roof space or sub-floor, inspect the following:

1. Measure between supports — any horizontal copper run with gaps over 1.5m is undersupported
2. Look for sagging sections — a visible downward curve between supports confirms insufficient spacing or missing clips
3. Check clip condition — plastic clips in high-UV Gold Coast roof spaces become brittle and crack. Cracked clips allow pipes to vibrate free
4. Examine joint stress — check that elbow and tee joints have a support within 150mm on each side of the fitting
5. Look for pipe-on-pipe contact — pipes resting against each other create noise and can erode each other through vibration wear

DIY Pipe Support Installation

Materials needed:
Pipe clips or hangers matched to pipe material and diameter, stainless steel screws for outdoor/roof use, drill.

1. Plan the support layout before installing — mark positions at maximum spacings with a chalk line.
2. Position supports within 150mm of all fittings (elbows, tees, unions) — these are stress concentration points.
3. At expansion points, use a clip that allows slight longitudinal movement — don't rigidly clamp a long run at every point with no allowance for thermal movement.
4. Secure all clips with appropriate fixings for the substrate — timber, masonry, or steel stud anchors.
5. In outdoor locations, use UV-rated stainless hardware and UV-stable pipe clips.

When to Call a Plumber

Call a licensed Gold Coast plumber when:

• Multiple joints are weeping and you suspect differential movement
• Roof-space pipes have visible sag between rafters
• Water hammer is severe and appears to be moving pipe sections during pulses
• You need new pipe runs installed as part of a renovation
• An inspection reveals badly corroded or fractured older pipe clips throughout the system

Coastal Plumbing Professionals carries out full plumbing inspections and pipe support rectification across the Gold Coast. Call 1300 590 085 to book a roof-space or sub-floor inspection.

Preventing Future Support Problems

• Use stainless steel clips throughout — plastic doesn't last in Queensland's climate
• Support every fitting on both sides — don't leave elbows or tees unsupported
• Plan pipe routes along structural members to make support easy and consistent
• When in doubt, add an extra support — they cost cents and prevent expensive repairs

Conclusion

Pipe support is one of those details that barely registers during installation and causes serious problems over decades when it's inadequate. In Gold Coast homes, the combination of extreme temperature swings in roof spaces, humidity, and coastal salt air means that support materials and spacings matter more than in more temperate climates. If you have access to your roof space or sub-floor, a visual inspection of your pipe support is a worthwhile annual maintenance check. For anything that needs rectifying — or for a full professional inspection — call Coastal Plumbing Professionals on 1300 590 085.

Frequently Asked Questions

How far apart should copper pipe supports be in a roof space?
For copper pipe up to 25mm in diameter, supports should be no more than 1.2m apart horizontally inside buildings. In Gold Coast roof spaces with significant temperature swings, supporting at 0.9m provides additional protection against thermal sag.

Can pipes be rested on timber joists without clips?
No. Without clips, pipes rest loosely and vibrate, causing noise and wear at contact points. They also move laterally and can fall during a water hammer event. All pipes should be properly clipped.

My pipes rattle and bang in the ceiling — could support be the cause?
Yes. Under-supported pipes vibrate during pressure surges and can contact roof structure during water hammer events. Additional pipe clips at or below maximum spacing will reduce or eliminate the noise.

What is the difference between a pipe clip and a pipe hanger?
A pipe clip saddles over the pipe and screws to a solid surface above or beside the pipe. A pipe hanger holds the pipe from above on a rod or strap, allowing the pipe to hang below the structure. Hangers are used where sub-floor or overhead clearance doesn't allow clip mounting.

Should pipes be isolated from metal structures to prevent galvanic corrosion?
Yes, particularly copper pipes in contact with steel framing. Use plastic-lined clips or rubber-backed saddle clips to maintain an insulating layer between the pipe material and dissimilar metals.
